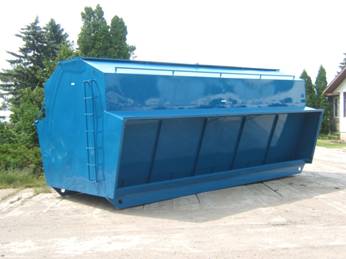

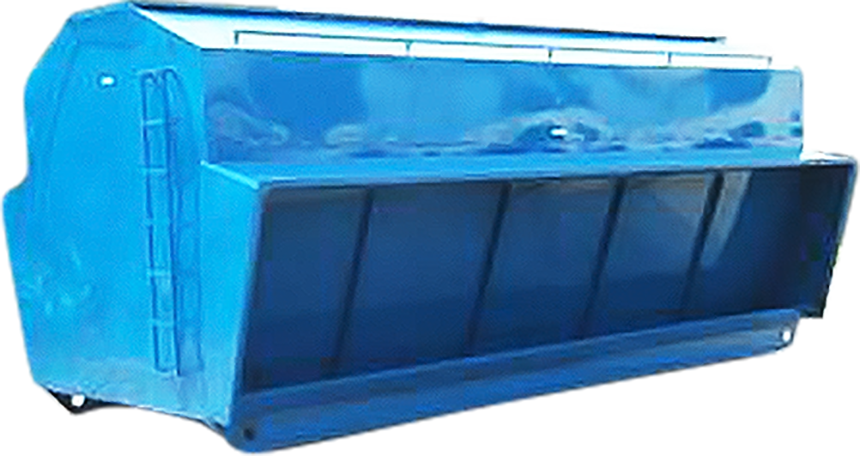

Self-Feeders
Our Metal Self-Feeders are suitable for Bison or Cattle.
They have the following features:
- 14 gauge steel construction
- Full length lids
- Full length lid deflector to avoid spilling feed between lid and roof.
- Lid handle allows opening from ground
- 20” Eaves for wind and rain protection
- New Weatherproof chutes open up to 7”
- Feeding troughs on both sides
- Full length ladders inside and outside for easy access to feeder
- 9” high skids
- Feeders clean out completely with New full width Vee bottom.
- 650, 800 & 1000 BU feeders come standard with full length catwalk
We Build Self-Feeders in the following sizes:
- 250 bu. dimensions 5’w x 10’l x 8 ½’h
- 400 bu. dimensions 5’w x 15’l x 8 ½’h
- 650 bu. dimensions 8’w x 12’l x 8 ½’h
- 800 bu. dimensions 8’w x 15’l x 8½’h
- 1000 bu. dimensions 8’w x 20’l x 8½’h
Our Bunk Feeders Feature:
- Standard 10’ x 30” size
- V-shaped bottoms
- Solid rod skids
- All steel construction
- They are guaranteed against collapse caused by livestock
Our Hog, Sheep, or Poultry Feeders Feature:
- Full length lids
- Troughs on both sides
- Adjustable troughs open up to 8 inches
- Eaves for weather protection
We build Hog, Sheep or Poultry Feeders in the following sizes:
- 130 bu. dimensions 5’w x 10’l x 4’h
- 200 bu. dimensions 4’w x 10’l x 7’h
- 400 bu. dimensions 5’w x 15’l x 7½’h
Our 27 ft bottomless Feeder Bunks Feature:
- Feed/silage bunk
- Stackable for ease of transportation
Our H.D. Bale Feeders Feature:
- Comes in 2, 3 & 5 bale sizes
- Rounded corners & raised bottom for easy field movement
- Structural frame made from 2 3/8″ round tubing, and 14 guage skirting(51″ high)
- feeding slats made from 1 1/4″ square tubing

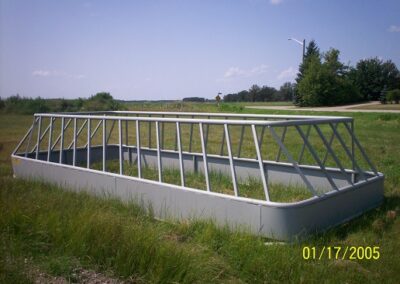

3-bale feeder

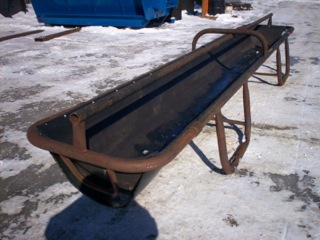

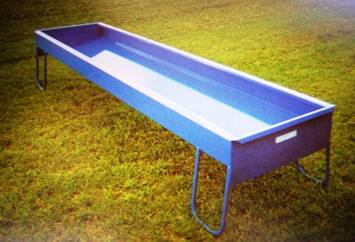

10 ft. Bunk Feeder

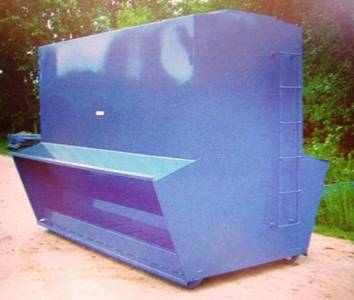

200 bu. Hog, Sheep, or Poultry Feeder

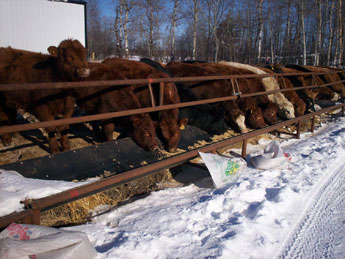

30ft fenceline feeder

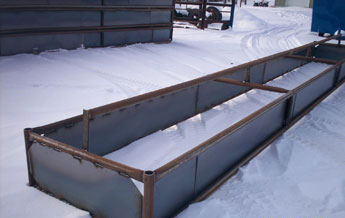

27 ft bottomless Feeder Bunk
HD 19’ feed bunk
3-bale feeder
Creep-Feeders
250 bu. (5’ x 10’) Creep-Feeder is dual purpose. It has enough headroom to be used as a small Self-Feeder when panels are removed.
The 250 bu. Creep/Self-Feeder on Wheels
has the following features:
- 12,000 lb Axle is guaranteed for transport when feeder is full
- New Highway rated 10 Ply Radials (Not Blems) on sixteen inch rims
- Replaceable 7,000 lb Screw Jack on 9 inch jack pad
- Salt & Mineral attachment with Rubber Tubs
- Full length Lid
- Lid Locks
- Lid Handle that allows opening from the ground
- Full length Lid Deflector to prevent feed jamming in behind lid
- New Weatherproof Chutes open up to seven inches.
- Feeders clean out completely with New full width Vee bottom.
- Generously proportioned Feed Troughs are 5” deep by 16” wide by 10’ long
- Feed on one or both side
- Twenty inch Eaves for weather protection
- Full Length Ladders inside and out for easy access to the top and inside of the feeder
Creep Feeders feature our New “Magic Panel”
- Panels won’t block lid for filling
- Panels keep cows away from feed open, closed or any where in between.
- No pins to pull or put in
- Simple to open and close
- Creep panel is a full NINE feet from the trough
- A total of SIXTEEN walk through stalls located in the front sides and back.
- Calves do not need to make a 180 degree turn to exit creep pen
- Panels remove easily from feeder for Self-Feeding
The 400 bushel Creep Feeder is available on skids and has the same features as the wheel model.
- Feed Troughs are 5” deep by 16” wide by 15’ long
- 15,000 lb axle
- Replaceable 10,000 lb screw jack
- Equipped with implement tire 15.0/55-17
- New Weatherproof Chutes open up to seven inches.
- Full length lid and lid deflectors
- Lids open from the ground
- ladders inside and out for easy access to feeder
Our 130 bu. Creep-Feeders on Wheels have the following features:
- Salt & Mineral attachment with rust free Rubber Tubs
- Salt resistant undercoat in the Salt & Mineral attachment.
- Full length Lids
- Lid Locks
- New Weatherproof chutes open up to 7”
- Generously proportioned Feed Troughs are 5” deep by 16” wide by 10’ long
- Feeders clean out completely with New full width Vee bottom.
- Feed on one or both sides
- Eaves for weather protection
- Step inside and outside for easy access to inside of feeder
- New Highway Rated 10 Ply radials (not blems) on sixteen inch rims
- Replaceable 3000 lb screw jack

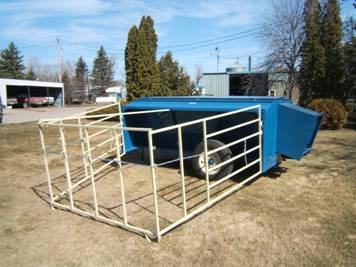

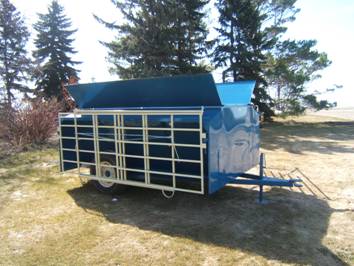

250 bu. Creep-Feeder on Wheels shown with “Magic Panel”
250 bu. Creep-Feeder shown with “Magic Panel” in transport position
400 bu. Self-Feeder on wheels
130 bu Creep-Feeder on Wheels with “Magic Panel”
130 bu Creep-Feeder on Wheels with “Magic Panel”
Bison Feeders
- 19” eaves for weather protection
- Open eave ends allow side vision
- New 10 ply radials (not blems) on 16” rims
- 12,000 lb axle
- Replaceable 7000 lb screw jack mounted on hitch
- 5” deep trough is 16” wide and 10’ long with feeding on both sides
- New Weatherproof chutes open up to 7”
- Feed on one or both sides
- Salt & Mineral attachment with rubber tubs is standard
- Salt resistant undercoat in the Salt & Mineral attachment.
- Ladder inside and outside; outside ladder swings out of the way to clear salt & mineral attachment
- Full length Lid
- Full length Lid Deflector to prevent feed jamming in behind lid
- Lid Lock
The 250 bu Bison Creep-Feeder has these additional features:
- Fold-in Panels are user-friendly
- Panels form eight foot pen when set up
- Panels may be left set up while filling feeder
- Cross Bar in front panel is adjustable to three heights
- Diagonal tube to stabilize panels is included
These models are recommended for sheltered areas.
Our 400 bu. Bison Self-Feeder Features:
- 5” deep trough is 16” wide and 15’ long with feeding on both sides
- 15,000 lb axle
- Replaceable 10,000 lb screw jack
- New Highway rated 10 Ply Radials (Not Blems) on dual 16” rims.
- Feeders clean out completely with New full width Vee bottom.
- New Weatherproof chutes open up to 7”
- Full length lid with feed deflector.
250 bu Bison Self-Feeder
250 bu Bison Creep-Feeder Transit
250 bu Bison Creep-Feeder – Feeding

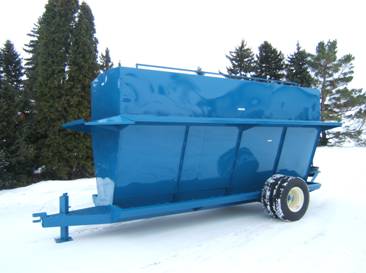

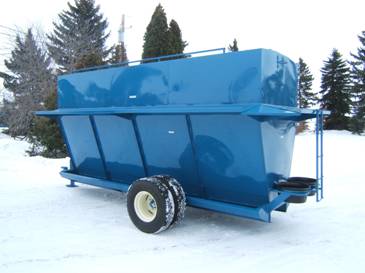

400 bu Bison Self-Feeder
